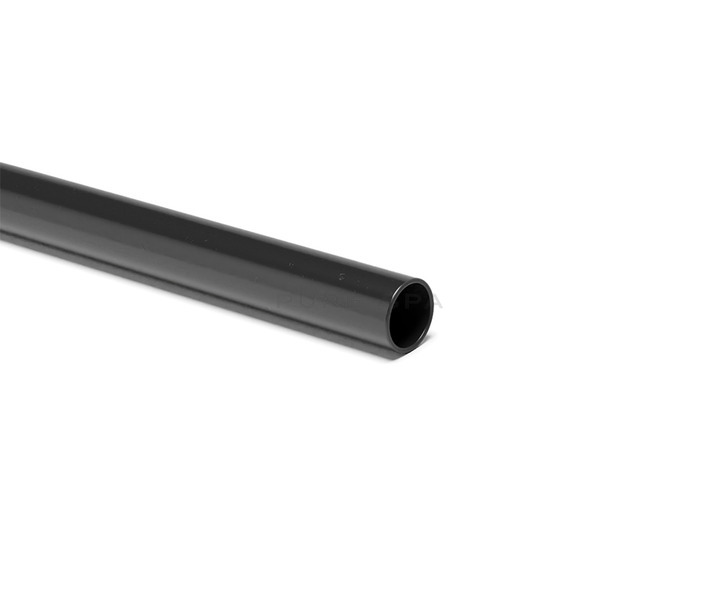

20mm Rigid PVC Pipe - Grey
(20mm OD x 17mm ID)
Rigid Pipe PVC - Metric
Pressure pipe that provides excellent chemical resistance to most solutions of acids, alkalis and salts and solvents that can be mixed with water. Rated to 145psi/10bar.
PVC pipe and fittings are one of the most widely used materials for pipe installations. Suitable for both indoor and outdoor applications and common place on hot tubs, whirlpool baths, spas and swimming pools. All fittings and pipework have smooth bores which aid in good flow characteristics and resistance to abrasion. PVC is light to handle and can be easily jointed with a simple set of tools, PVC solvent cement and accessories.
| Pipe Diameter Ø | PSI Rating | Outer Ø (mm) | Inner Ø (mm) | Wall Thickness (mm) | Sold by (m) |
| 20mm | 16 | 20 | 13.0 | 1.50 | 1m |
| 25mm | 16 | 25 | 21.2 | 1.90 | 1m |
| 32mm | 16 | 32 | 27.2 | 2.40 | 1m |
| 40mm | 16 | 40 | 34.0 | 3.00 | 1m |
| 50mm | 10 | 50 | 45.2 | 2.40 | 1m |
| 50mm | 16 | 50 | 42.6 | 3.70 | 1m |
| 63mm | 10 | 63 | 57.0 | 3.00 | 1m |
| 63mm | 16 | 63 | 53.6 | 4.70 | 1m |
| 75mm | 16 | 75 | 63.8 | 5.60 | 1m |
To comply with our delivery company we can send a maximum of a 2 meter continuous length. Bulk supply of pipe in longer continuous lengths is available, Please contact us for shipping quotes.
Please Note: A tolerance of 5% in cut length measurement must be allowed due to manufacturing process.
| Unit Type | Metric |
| Pipe Size | 20mm |
| Inside Diameter (ID) | 17 mm |
| Outside Diameter (OD) | 20 mm |
| Wall Thickness | 1.5 mm |
Looking for piping for our fishpond I finally came across this product, and it's just the job ! The fact that it's a dark grey colour and doesn't need painting is a bonus. Carriage a bit steep, but delivery was pretty quick. Thanks, will purchase from Hydrospares again.
