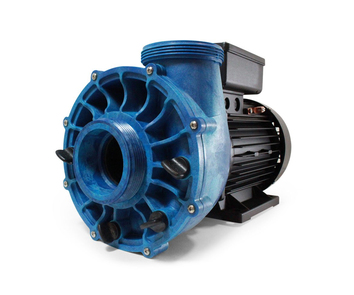

Waterway Executive 56F Spa Pump - 2 ½HP - 2 Speed - 2 ½" x 2"

93mm Centre Suction x 79mm Side Discharge

LID: 661
56 Frame
Two Speed
2 ½HP
2 ½" x 2" (93mm x 79mm)
£414.57 Inc VAT
( £518.22)
PMP-3529
PF-25-2N22X25
Special Order ItemLead time to be confirmed
Contact for lead time
Extended Warranty Available
Extended Warranty Available
Add your 1 year warranty in the basket
Waterway Executive 56F Spa Pump - 2 ½HP - 2 Speed - 2 ½" x 2"
£414.57
RRP £518.22

High Volume - Cooler Running

The Waterway range of Executive pumps are designed especially for hot tubs and spas.

Hi-performance Waterway wet ends are driven by quality E.M.G motors that by design, dissipate heat quicker and give lower running temperatures.

A commonly used pump that serves as a booster pump to deliver a high volume of water through jets in hot tubs and swim spas.

The larger 56 frame pumps use a more robust heavy duty motor and are favoured by spa manufacturers. Always check you have enough space to fit one if you intend replacing a 48 frame pump.

This pump is fitted with the less common 2 ½" suction, meaning a greater up take of water is drawn into the pump.

Waterway pumps are great alternatives to more expensive brands as well. Their wet end shape and dimensions mean they can replace most hot tub pumps out there from the likes of Aqua-flo, Century Laser, AO Smith, Vico, Sta-Rite, Emerson just to name a few. Usually little or no modifications are required.

Please Note

  • The Executive pumps are supplied without a cable. We recommend re-using the cable from your old pump to ensure correct fitment to your spa pack.
  • Unions Available Separately
Model Information
Dimensions L x W x H 430x200x240mm
HEAD - H max 21 / 3m
FLOW - Q max 235 / 50lpm
Type / Speed Circulation,2 Speed
Model Executive
Horsepower 2.5 Hp
MPN PF52N22X25 3721221-13
Motor Information
Voltage / Frequency 220-240V / 50Hz
Amp Draw 10.9 / 2.00 A
Power - P1 2.38 / 0.43 kW
RPM 2900 / 1450
Capacitor Size(s) 36 / 16 µF
Frame Size 56F
Cord / Plug Type N/A, Bare Wire
Wet End Information
Configuration Center Suction, Side Discharge
Part No. 310-1510-SL
Connection Diameter 79mm x 93mm
Thread Type Male - Buttress
Impeller Part No. 310-4180
Impeller Diameter 117mm
Impeller Vane Gap 16mm
Impeller Dot Colour N/A
Shaft Seal Type PS-1000
Spare Parts Available No
More Info

Pump Specifications

Dimensions

  • 430 x 200 x 240 (mm)

Summary

  • Frame: 56
  • Power: 2 ½HP
  • Speed: 2
  • Power (kW): 2.48 / 0.52
  • Amp: 11.4 / 3A
  • Union: 2 ½" (intake) x 2" (discharge)
